1/72 scale kits of Jet Provost and Strikemaster family
review / modelling report
... continued from page 1...
|Airfix had issued many year
ago a 1/72 model of the the BAC Strikemaster / Jet Provost mk. T.5 (kit
02044 and later kit A03049). But before that, there was another kit
of the Jet Provost T.3 kit #01029 seen here.

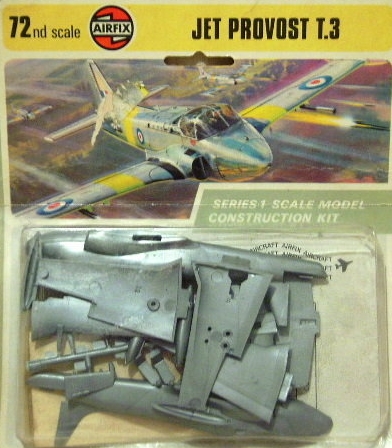

The kit was released in 1973 and is
pretty rudimentary. I had the kit in a blister package.
I had this old kit still on the stack, it was decided to build it with some small refinements.
NOTE: In September 2016 Airfix released a brand new T.3 kit with kit #A02103 ... see page 3....
The Kuwait air force used the Jet Provost T.mk 52 in the 1960s and it had a very nice paint scheme with painted aluminium, very dark blue-grey nose and tiptanks and a bright blue tail section. It would great in my "World Air Force model collection".
It was decided to do a rather straight
out of the box model, but I found out that the clear canopy during the
years had broken in my kit! Fortunately my IPMS friend Cees had made
a couple of home made clear thin canopies for his kits.
UPDATE: September 2016 Airfix issued a brand new Jet Provost T.3 kit. It has a "spare canopy" and could be used if you still have an old Airfix kit at home to make...
The model could thus be built as Kuwait as I had after market decals (the old Airfix kit decals were old and unusable).

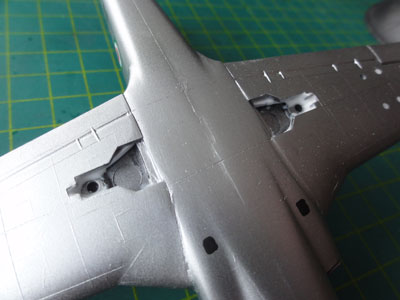

Construction was as per kit instructions. But I inserted a jet pipe made from a straw. Wheel bay walls were "closed" with some card and white glue and painted silvers when dried. Some putty and sanding is needed at the wing fuselage joints, intakes and spines. The intakes are rather thick on their edges so red covers will be set in place later on.
When assembled and sanded the model gt a base light grey coat. When it looked good, it was time for the colour scheme.
Colours used were for the Kuwait scheme:

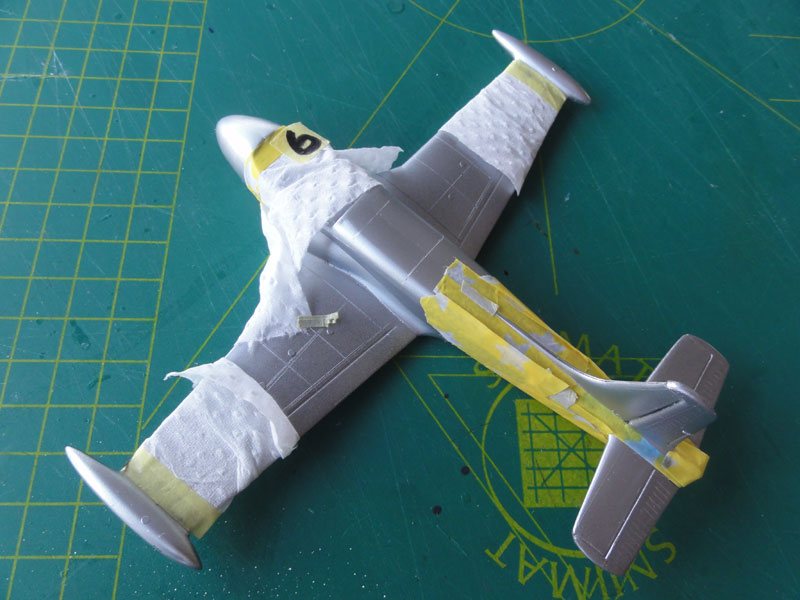

These colour were applied with the
airbrush and masking with tape was obviously needed.

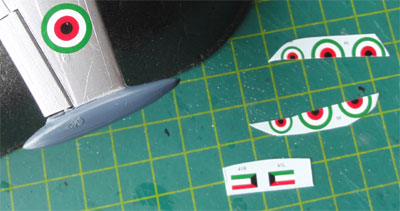

Decals came next and I had to collect
various ones from the decals spares box and sets like the excellent XTRADECAL
X72238 that has numerous decals for Jet Provosts and Strikemasters
of various air forces.
The intakes are rather crude with
unconvincing edges. I added a couple of red covers to hide these. Some
black walkway areas were added as well made from black decal.

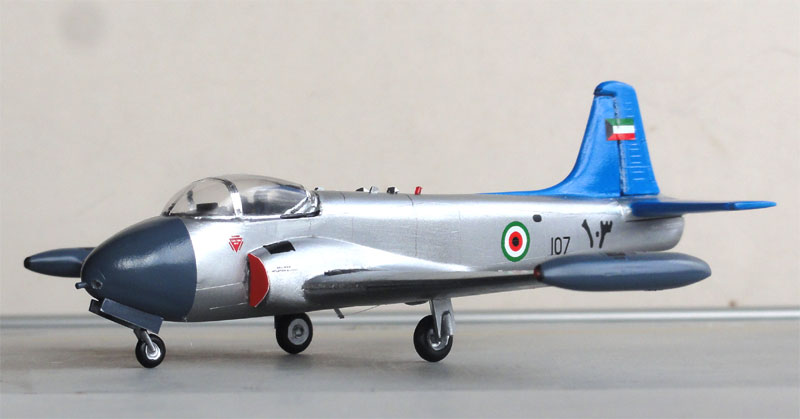

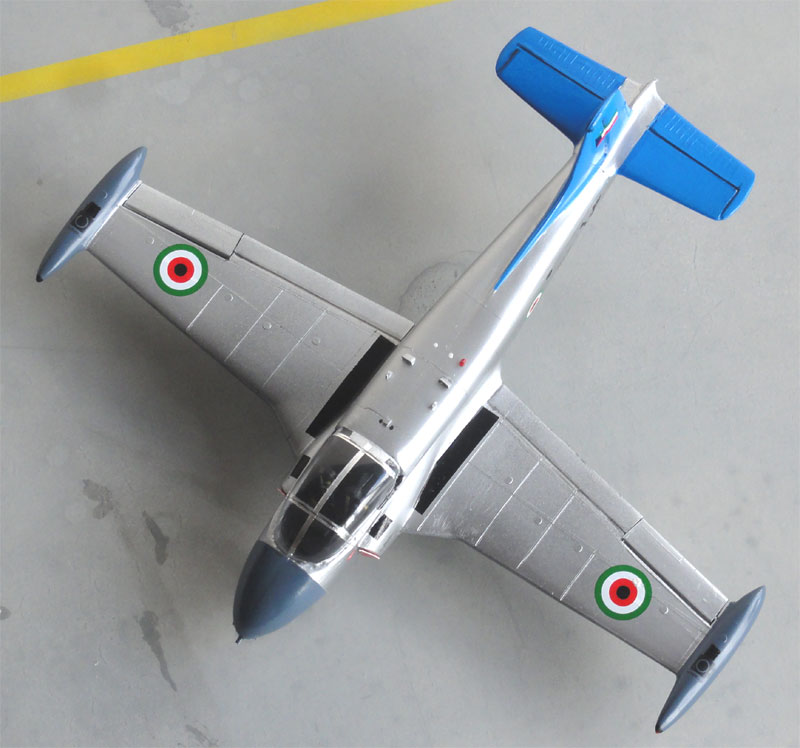

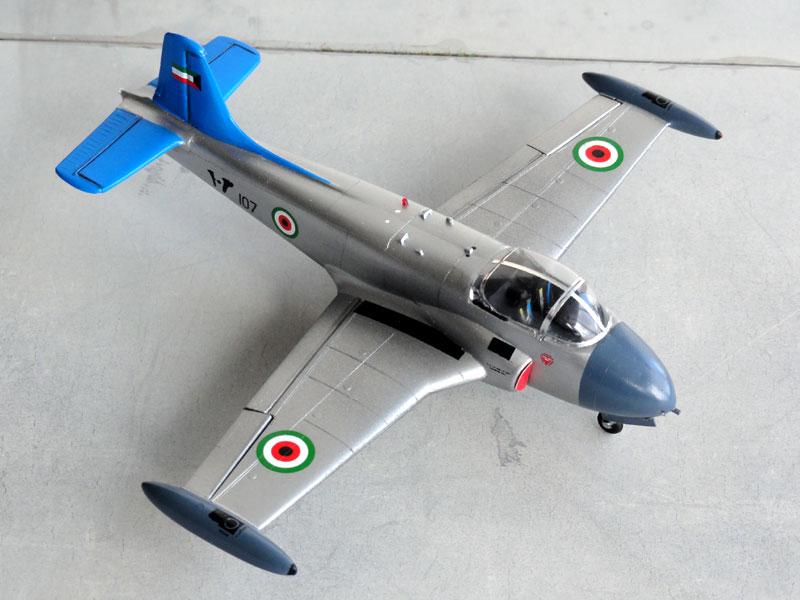

Final modelling was adding the details. I could not see clearly were the pitot tube(s) was located. Photos suggested that it varied a bit between marks and I think the Kuwait T mk.52 had a single small pitot tube below the right wing. Also, a long antenna and two wire antennas under the nose were seen. These were made of thin fishing line, attached with super glue.
On the fuselage spine some smaller intake scoops were added from scrap plastic and painted silver. The anti-collision lights were painted as well with a clear red bit of plastic on top of the fuselage. (I could not find wing tip collision lights). In the blue-grey nose small holes were drilled for the landing lights as seen on the real Jet Provost and a small pipe.
The landing gear and so on is quite simple in the kit, I kept it as it was simple on the real jet Provost as well. I did not bother to open up the nose gear bay but made new nose doors. (Often the forward doors are also seen closed). The small gaps on the closed main gear doors and the holes for the rockets and pylons were filled with white glue and painted silver when dry.
The model is a genuine tail sitter..
ooops...., so I put not enough weight in the nose and now had to put a
metal wire below the aft fuselage to keep the model sitting on its nose
[area: 17,800 sq.km | population: 4,4 million with 40% Kuwaiti's | capital: Kuwait city | GDP 28,000 USD per capita nominal ]
The small Kuwait Air Force (Al-Quwwat al-Jawwiya al-Kuwaitiya) was formed in 1961. Using the British doctrine, it got British aircraft like the Jet Provost T. mk 52, and later Strikemaster and BAC Lightning supersonic fighters. Later, some 36 French Mirage F-1 aircraft were used as well as some 36 A-4 Skyhawks and Hawker Hawk jet trainers.
Unfortunately, the Gulf War came in the early 1990s and when liberated, the Kuwait Air Force was quickly modernized with F-1 and A-4 phased out (many sold to Brazil). Current modern aircraft in the inventory are the some 40 F-18C/D Hornet and Shorts Tucano for training. Some 28 Eurofighter Typhoons are to be delivered. AH-64 Apaches are flown along with other helicopters like Caracal, AS332 and SA342. Transports are C-17 and even KC-130J tankers are used. Bases are at Ahmed al Jaber, Ali al Salem and Kuwait city.
