designer

F-16 models in 1/32 scale
Hasegawa kit conversions:  F-16C "late Block 30" and F-16AM MLU conversioncontinued.....

... continued from page [H5]

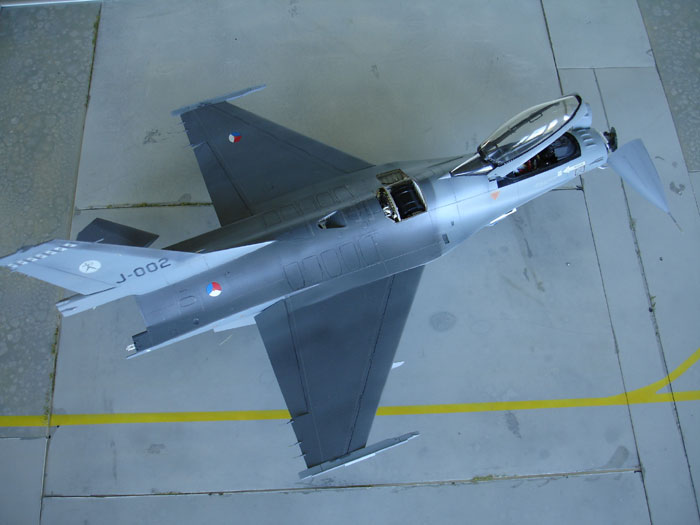

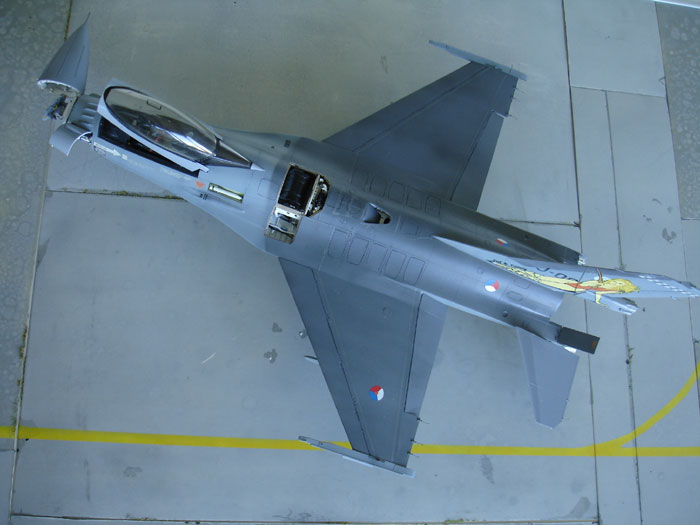

F-16AM MLU Dutch AF: Koninklijke Luchtmacht no. 323 Squadron , J-002 as "Diane" in the year 2001

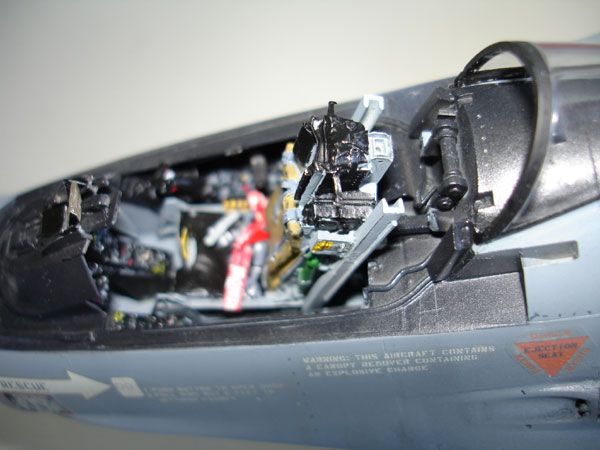

MLU type cockpit: note darker areas, such as sidewalls and parts on the ejection seat

Diane

check out the diorama on the next page H7...

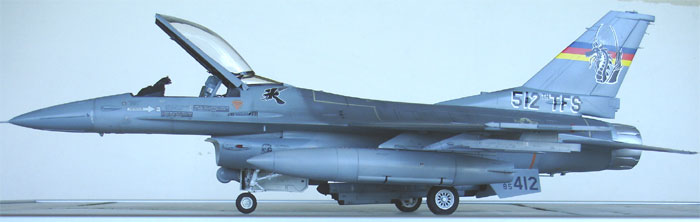

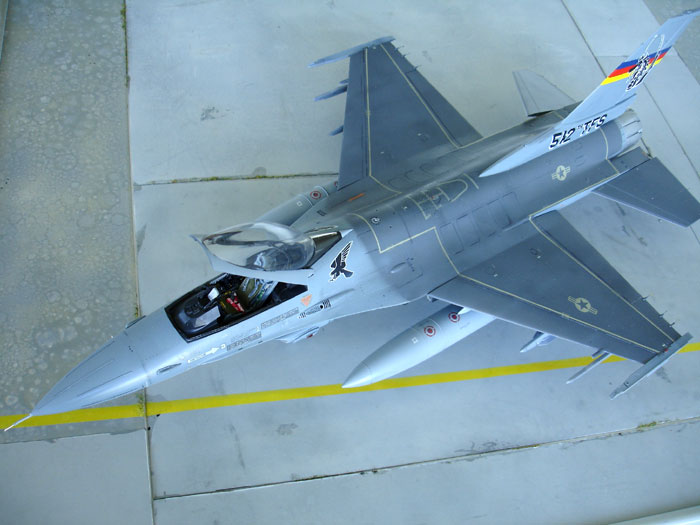

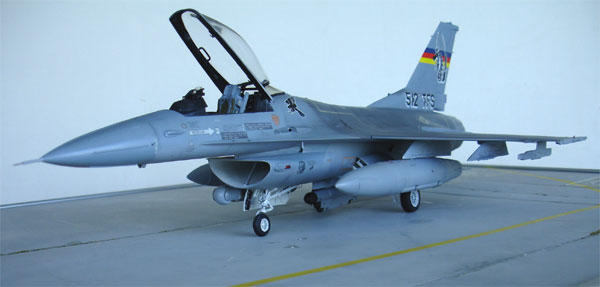

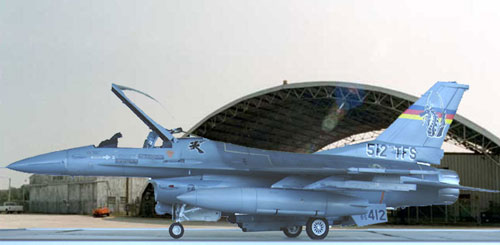

F-16C Early block 30 :  USAF 512 TFS
Year 1987

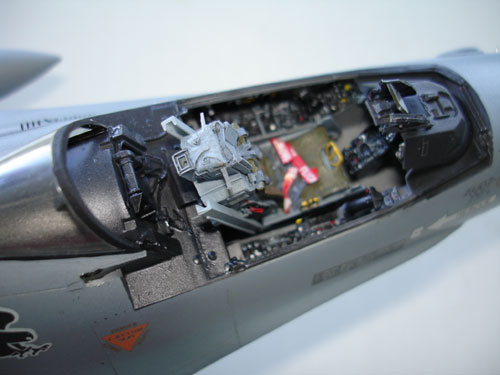

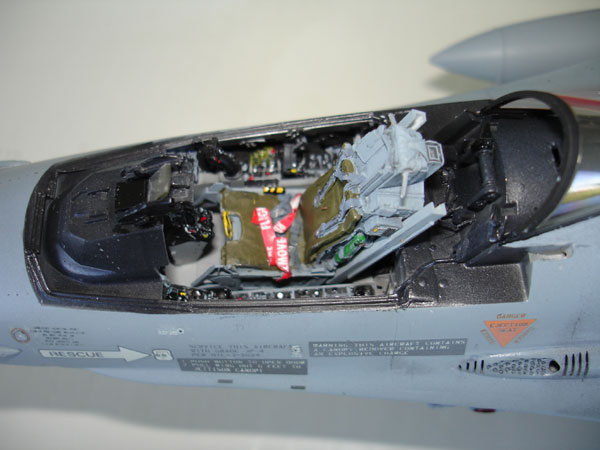

F-16C "early block 30"  style cockpit with seat mostly in medium grey;
note that later F-16 blocks have often different HUD types and instruments.

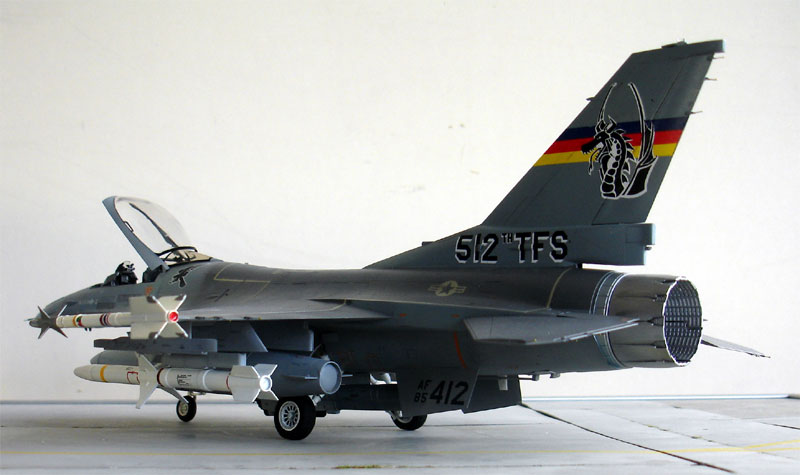

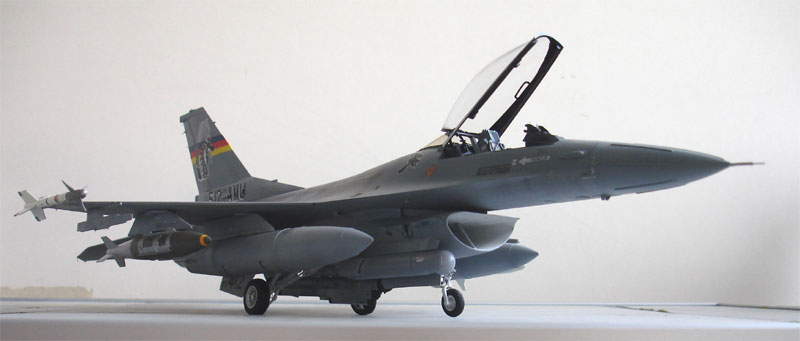

The next pictures show the model with added "stores". These were obtained from the Academy F-16C 1/32 kit.

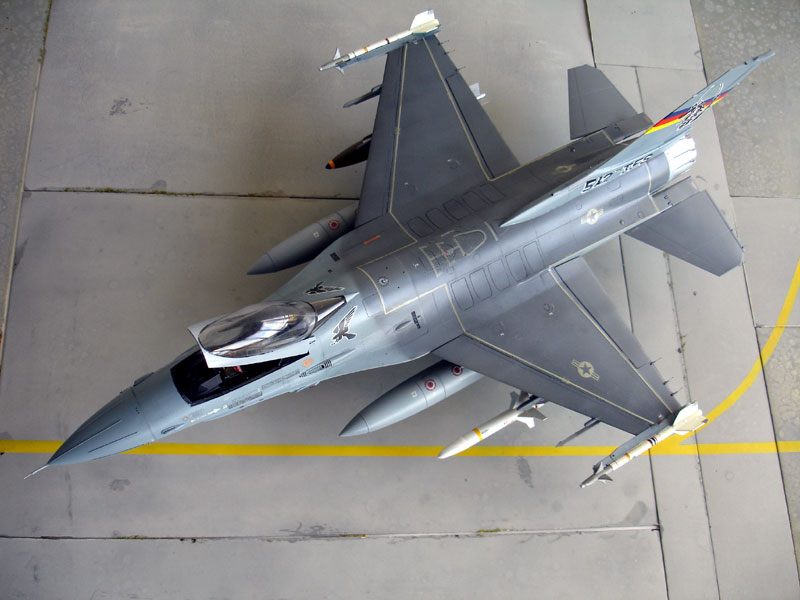

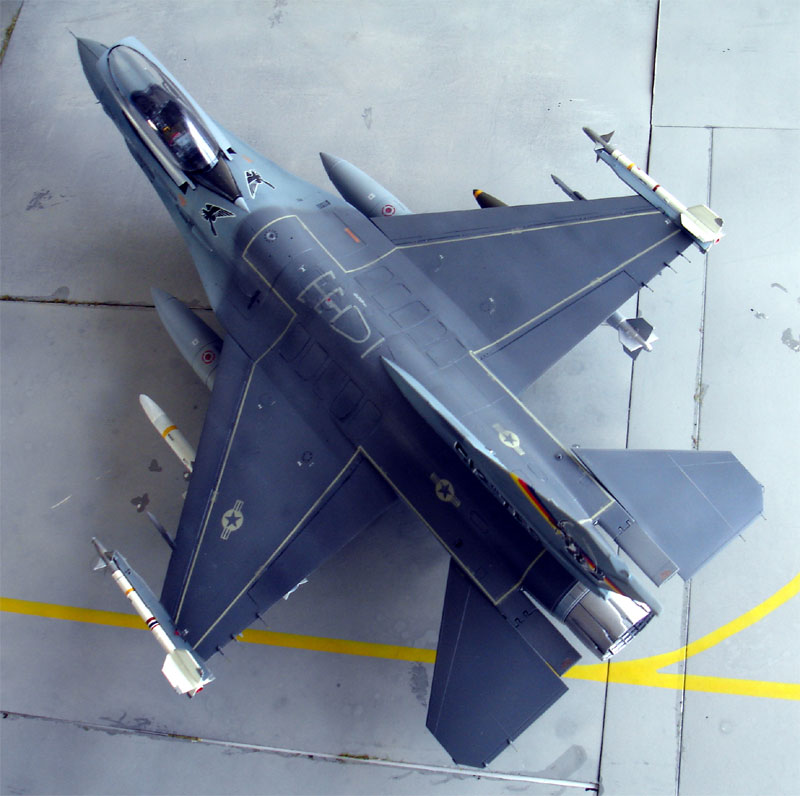

from left to right: AIM-9M Sidewinder / "empty pylon" / GBU-31 JDAM / 370 gallon wing tank / AN/ALQ-184 ECM pod / 370 gallon wing tank / AGM-88 HARM / "empty pylon" / AIM-9M Sidewinder.

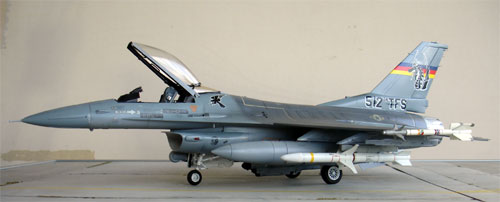

  The large AGM-88 missile under the wing and the Sidewinders on the wing tips.

On to next page [H7]... Diana diorama...
