Fairchild A-10 "Warthog"

A-10 models in 1/72 scale, modelling report

The Fairchild / Republic A-10 is the attack aircraft of the USAF, designed to fly at low level during ground battles. Hundreds of them are in service with the USAF.

Several models in 1/72 exist, the first one came from Monogram way back in 1977, later from Airfix/Heller, Hasegawa, Academy, Matchbox and others


The Monogram /72 model (no. 5405) is simple but results into a nice representation.



Add enough weight in the nose first, than assemble. You need some putty, especially on the engine nacelles and the model will benefot from detailing the undercarriage and cockpit. Also, add the wing LE guide vanes on the inboard wing, as these are fitted to production aircraft, this model being based on a "pre-production" version.

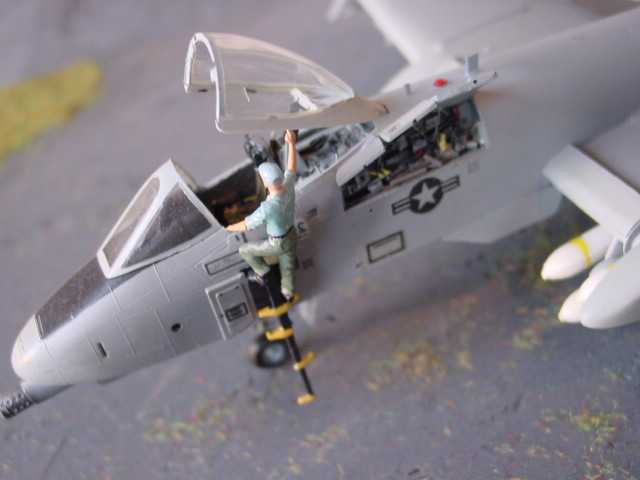

An open panel was added as a detail, along with the supplied crew access ladder and some stores from a Hasegawa weapons set.

.A-10 sideview

forward view

The colourscheme has the light grey finish. Decals are best replaced by eg. another set, such as from Microscale.
rear view

upper view

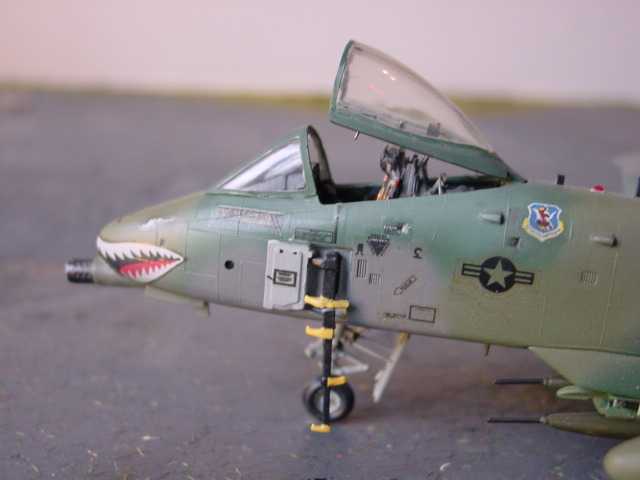

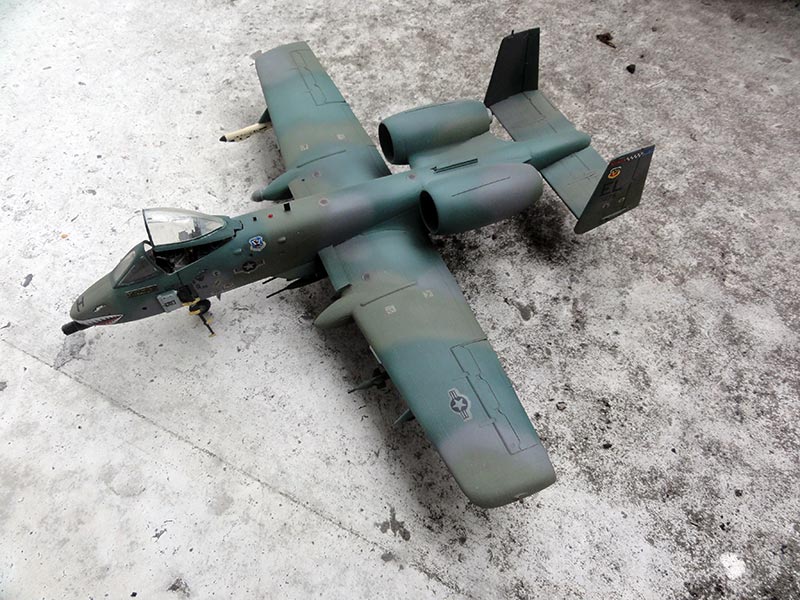

Another Monogram A-10 model was finished in the "European One" camouflage scheme of Fed.Std  FS36081, FS34092 and FS34102 airbrushing Humbrol enamel paints Hu32, Hu149 and Hu117.
Another kit I have is the one of Academy in 1/72, but I still need to build it. Is seems to be a nice kit (copied from Hasegawa?...)

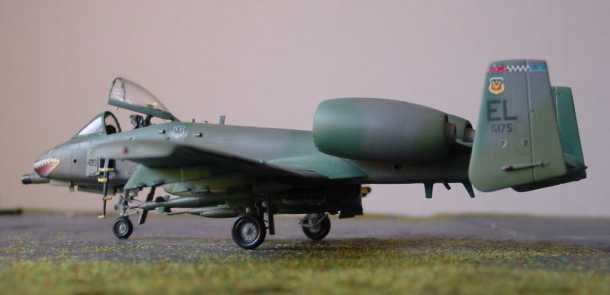

side view European A-10




a-10 european scheme

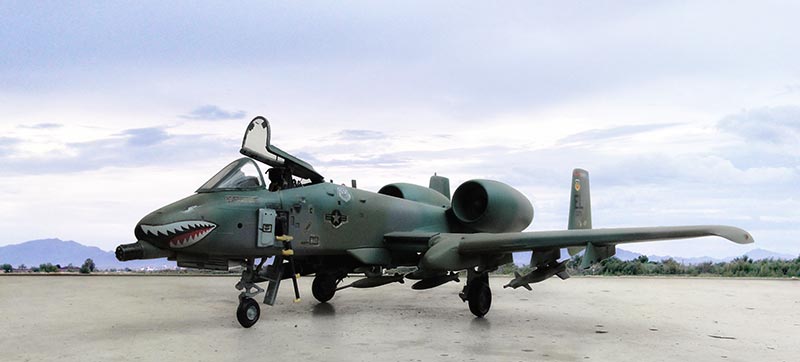

a-10 tarmac

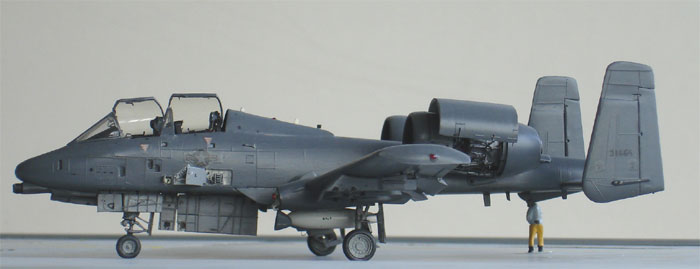

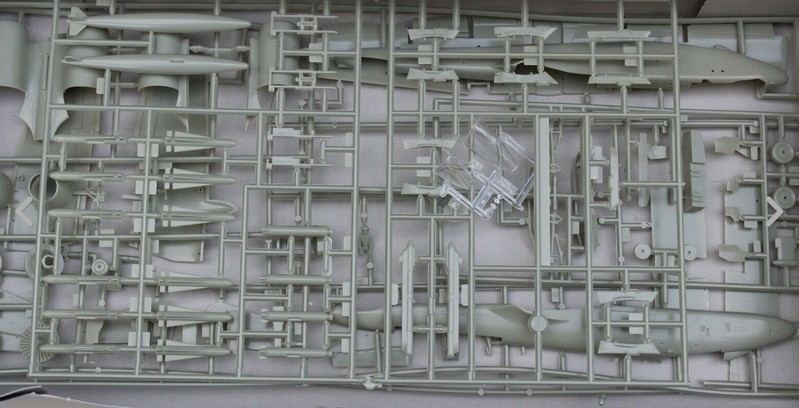

The Airfix A-10 1/72 kit no. 6005 was used as a basis for the conversion into the NA-10 two-seater variant.

a-10 airfix

This was envisaged as all weather A-10, with special vision equipment. It never came into series production.
The conversion needs:
- larger tailfins (from card)
- new canopy (made from clear sheet)
- adapted bulged shape at the cockpit (card)
- vision pod

The length and the basic wing are as for the normal A-10.

I also, besides the conversion, added:
- the detailed canonbay and doors, including the canon itself
- a detailed engine

Basic overall colour airbrushed was FS36118 dark grey with Humbrol HU125 enamel.

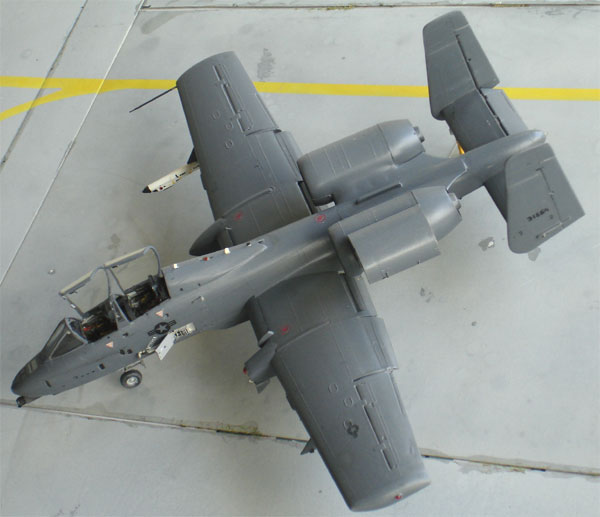

upper view NA-10

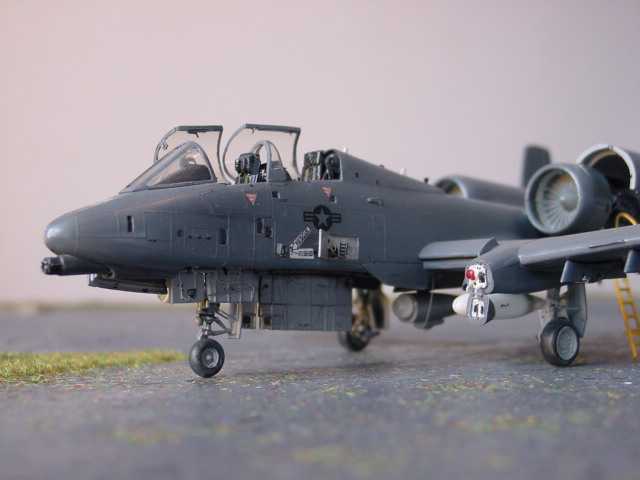

forward fus

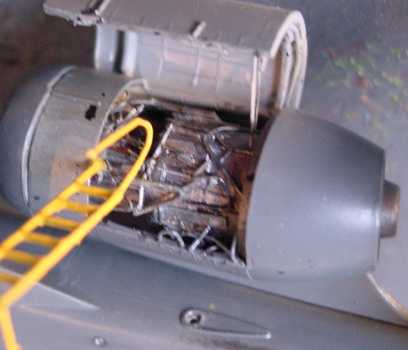

engine detail with opened hatch

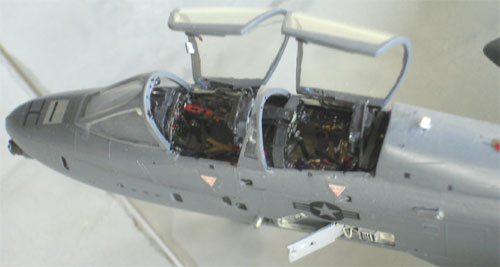

cockpit NA-10


the instrument panels and NAW-10 cockpit

The model was finished in simply overall FS 36188. Decals came from an A-10 sheet.



Back to 1/72 Models

- Squadron Signal, A-10 in action
- Air international Vol 16, page 270
- Scale aircraft modelling, 98/11 , 78/12
