F-5 "Freedom Fighters" in 1/72 scale : kit modelling report


... continued from F-5 page 3....

F-5B  FREEDOM FIGHTER TRAINER


A few two seater F-5B models were made with the ESCI kit (release kit #9035) as described on page 1...


FREEDOM FIGHTER:
page 1
page 2
page 3
page 4

TIGER:
page 5
page 6
page 7


(7)  F-5B  Simorgh IRAN
The next F-5B model was for a "Islamic Republic of Iran Air Force" (IRAN) F-5B "Simorgh". In the past over 120 F-5A /B aircraft were supplied during the Shah regime. Many former US supplied aircraft were refurbished during the arms embargo by the Iran Manufacturing Industries (HESA). The Simorgh is local conversion of a F-5A to a two seater F-5B. On the internet variations are seen of these aircraft: some have tip tanks with black anti-glare, others don't and there are more smaller differences. So pick a scheme and photo and complete the model as seen.

The AZTEC decalset 702050 shows a nice scheme for an IRAN F-5B with coloured stripes in 2005.


The model was assembled as per kit as the kit is good as described on page 1... I did not bother further to open up and deepen the jet exhaust pipes. The pipes extend about 0,1 mm at the lower fuselage edges, but it is hardly seen.

When assembled the model got a base light grey coat with the airbrush to check for any flaws. I needed some putty at the intakes and front fuselage joints.

Next, a white coat was airbrushed, I used Revell Aqua Weiss 04. No black anti-glare panels on the coke bottle tanks are seen on my picked F-5B coded "3-7020".

The gloss paint was when dry ready to get the AZTEC decals applied on the model.
Each decal was "dragged" through a Johnson Future/Pledge varnish bath to prevent "silvering".

I also added smaller stencils from other F-5 decal sheets such as red circles on the tip tanks. Also the fuel cap markings on the spine were added on the right side.

After decalling the model was completed, the edges of the vertical tail were painted to match the decal, so red on some edges.

Next was landing gear installment and very similar to the single seat F-5A kit. I added some wiring for the hydraulics on the gear legs.

On the wing tip tanks, their tips were painted red and blue. The anti-collision lights are situated on both outher wing areas inside the wing tip. Both on top and below. These lights were suggested with a tiny drop of red and blue paint. Also, the vertical tail edges were painted red and green where there were no decal stripes.

The inside edges of the air brakes parts #15, 16 need a bit trimming to fit either open or closed. On this model they were set open. The gear bay interiors were painted aluminium.


At each inner bay door #13, 14 an actuator was added from metal rod as well as a few small antennas made from thin card;  this varies a bit between individual F-5 Simorghs so check photos. On this model a tiny antenna was set at the spine aft of the rear canopy.

A little "dark wash" was applied in the recessed panels of flaps and inside the gear bays and gear legs. (a mix of diluted black acrylic paint and water). The model got a final varnish Johnson Future/Pledge coat airbrushed on to protect the decals and give an even sheen.

The canopies got some mirrors used an etched metal set. The canopies were installed as described on previous NF-5B kits. That completed the model.


Persian old flag
..............................

[ area: 1,648,000 km2 | capital: Tehran | population: 84 million | GDP ~7,000 USD per capita nominal ]

Military aircraft were used in Persia (now Iran) as early as 1925 with European aircraft used in Imperial Persia. During the Shah regime, that was Western focussed, the "Nirou Havai Shahanshaiye Iran" (Imperial Iranian Air Force) operated many American aircraft. About 69 Republic F-84G Thunderjets were flown from May 1957 until end 1965. In the 1960s F-86 Sabres and in February 1965 the first Northrop F-5 aircraft were delivered to the IIAF. Eventually 104 F-5A and 23 F-5B were obtained and the "Golden Crown" aerobatic team also flew the F-5. Other aircraft used in large numbers were the F-4 Phantom and even some F-14 Tomcats in 1970s (their only foreign sale). From 1972 over 180 new modern F-5E and F-5F Tigers were delivered and the older F-5 aircraft were sold second hand (e.g. to Turkey, Jordan, South Vietnam, Ethiopia, Greece). The Imperial armed forces were very large and modern forming at that time a stable factor in the rural Middle East.
In 1979 a Islamic revolution arised with large political and cultural changes, the Shah went in exile. The Islamic Republic of Iran Air Force was established after that regime change. Due to arms embargos it had to improvise in order to operate the existing large aircraft fleet. Local aircraft modernization programs were established with interesting projects like F-14 Tomcats flying with Hawk missiles and a few butterfly tailed F-5 aircraft.
Several local but drastic wars were fought with particularly Iraq from 1980-1988 and 1991 in the "Gulf Wars", also involving other Arab and Western countries. The Iranian F-5's were used a lot.
Current air force fleet is probably over 300 combat aircraft including F-5 Tigers, old F-4 Phantoms of which some 30 are still flying, some old F-14 Tomcats but also from 1991 12 Sukhoi Su-24, 24 MiG-29, Chengu F-7 and former Iraqi Mirage F-1. A large transport and helicopter fleet is also available. Rumours are that SU-35 are ordered for delivery end 2023.

A nice Iran F-5B Simorgh model is now in the World Air Forces collection...



(8)  CF-5D Botswana
The next ESCI F-5B model made was for a "CF-116" Botswana Defense aircraft. This is an ex-agressor second hand CF-116 aircraft from Canada of which 13 were acquired in 1996 with 2 extra aircraft in 2000. It is called the CF-5A and CF-5D and sports spectacular "blue-ish" colours.

AZTEC decal set 72050 provides nice decals. The Botswana national insignia is a blue bordered white triangle with black inserted triangle.

The good kit was assembled as described above.

Acrylic colours airbrushed were: (in this order)
- FS36307 light grey for which I used Gunze Sangyo H70 ;
- FS35237 gray blue using Gunze Sangyo H337 (looks almost as the lighter H70);
- FS36251 agressor grey using a mix of Gunze Sangyo H25 blue with a bit of White H1 ;

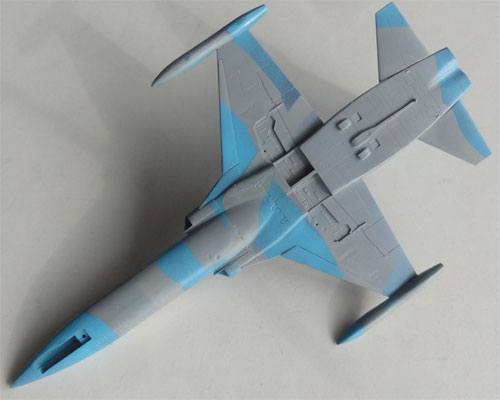

Each colour needed masking as the demarcations look rather "sharp". It requires a lot of masking for the "wrap around" scheme with low tack tape and masking film such as from Revell. Note that the fuselage end does not show a metal area, only the exhausts are burned metal.
