Sepecat Jaguar models in 1/72 scale" using old HELLER kits from France

page 5

... back to Jaguar page 1....

I also had a couple of old Heller Jaguar kits in 1/72 scale. Kit Ref #263 has about 50 parts and was an old fashion kit with several options for a single seater Jaguar "A francais", "B anglais" or two seater "E". The nose parts are separate.

The panel lines are not engraved but raised as this is an old kit. The undercarriage is rather basic and the airbrakes are moulded closed. The Heller kit has no stores such as fuel tanks nor pylons.

The same Heller kit was released later in several boxes but here as French "A" single seater, such as this one...

The old kit decals are better replaced, and the roundels are printed "off center"

OK, what to do with my pile of old Heller kits?
Although the later released Hasegawa Jaguar kits are much better with fine engraved panellines and shapes, I decided to make my old Heller kits nevertheless. The idea is to make special variants and conversions of these kits: Jaguar "M naval" prototype and Jaguar International IM "India".

The Heller kit assembly is straight forward when the panellines are kept and raised (so not re-inscribed). The wing is one piece although parked Jaguars often show the slat drooped down a bit and the flaps lowered. The airbrakes aft of the gear also droop down but are on the kit moulded closed.

Start building....
The kit cockpit is very simple with tub, control stick and one piece seat. The two seater has obviously two of those and another tub and a single piece double long canopy. The nose wheel bay misses a "roof", this was closed up with plastic card.

The smaller nose door on the nose gear strut is missing. Make from card (not seen here).

The kit instructions let you set the main undercarriage legs under a wrong angle. Cut away some plastic at each strut (parts 11 / 12) base point. The leg should be straight down vertical and the wheel boogie at about 80 degree angle tilted (almost horizontal parallel to the ground). As compared to the Hasegawa kit, the "track" is a bit smaller on these Heller kits. I was not sure what was correct, simply "assuming" that aircraft stores fitted and loads play a role here.

The inside shape of the opened main gear bay is a bit inaccurate at where the legs meet the bay but that is not easily seen. The small gear doors (parts 32 / 33) must be adapted a bit in shape with a knife to look better with a removed quarter. (The large main gear doors are moulded closed in the Heller kit but that is OK for most Jaguars parked as well as these doors close after gear deployment).

I deepened the exhausts so opened up the exhaust parts 31 and installed a deep tube made from old spare box fueltanks from scrap. It was painted black.

The ventral fins (parts #19 / 20) on the Heller kit are far too big but that is easily corrected by removing a strip of 2 mm wide at their base. A simple correction that vastly improves the looks of the Heller Jaguar model.

The real Jaguar intakes' spring loaded doors are a bit open on the kit parts #14 / 15 . You may fill these as these doors are closed most of the time for parked and flying Jaguars. I think they only open up when the Adour engines are started.

The thick tail antenna parts #40 are better replaced with thin card. Note that these are not seen on all Jaguars, check photos for the desired version.

Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9

[7]  Jaguar "International IM"  India

The Jaguar International IM is used by India for their land based maritime strike force.
I had a nice decal sheet of Model Alliance set 72138. It has decals for no. 6 squadron "The Dragons" as based at Puna or so called Poona Air Base in India, 2001. (The reference "World Air Power" Volume 11 has a nice drawing on page 67).
This Jaguar has a special nose with the specific AGAVE radar. These Jaguars were also capable of firing a Sea Eagle "look alike" missile for anti-ship missions. A nice change as compared to the other Jaguar models.

Again, a Heller kit was made. First, the fuselage with wing was assembled and the overall kit....

... and putty added with after that sanding. I tried to limit the sanding to retain the raised panellines.

....and next airbrushed was a base grey coat in places to check for any errors. Still some work needed....

This Heller kit will be made "as a Jaguar IM with engine running and pilot in the cockpit". So airbrakes are "up" as well as flaps and slats "up" (as per kit). Intake side doors are as per kit, so slightly open for engine running. Here the kit vertical tail is still seen, to be removed later.

Next, the Heller nose as needed for the "IM" specific AGAVE radar nose was adapted. I used the nose of a drop tank found in the spares box with correct shape and diameter. I could not identify which kit it came from, is it from a Tornado? Cut off the kit nose with a TIGER razorsaw.

Set the new nose in place and use now putty to get a smooth result.

The IM vertical tail has the RWR fairings at the tail, but for the Indian DARIN-I. Fortunately I had a spare vertical tail from a Hasegawa Jaguar kit and this was used after cutting off the Heller kit tail.

The model was further assembled as per Heller instructions but without the details yet like the undercarriages. Putty was applied and when dried sanded as needed.

Than the model got a light grey base coat and some corrections were needed. Some putty was again needed as seen and the model sanded.

The model is ready to get its India "IM" "disruptive grey" colours. It was quite difficult to establish the colours needed with contradicting sources and quotes like "Flint grey or Barley grey or Light Aircraft Grey". I looked at various photos, Indian IM Jaguars seem to have a blue sheen. These colours were picked:

- Mid grey : approx BSC 626 using Gunze Sangyo H308 (approx FS36375) acrylic; this looks quite like "Light Grey";
- Dark grey/blue:  a mix of 80% Gunze Sangyo H335 (BSC 637 medium grey) + 20% Gunze Sangyo H25 intermediate blue;

Make sure to keep some of the fresh mixed paint in a closed container for later touch up work like on the canopy frames and other parts.

I also airbrushed two large underwing fueltanks obtained from a Hasegawa kit with their pylons. Their pylon locating pins were cut off to get a clean fit later on.

Next started with the mid grey airbrushing that. Than mask with low tack "masking" film like from Revell (or tape and paper if you have those). Next the Dark grey/blue..
With the result... Slight variations in the colour application themselves suggested a "used aircraft".

The gear bay interiors got painted "zinc chromate yellow" using White Ensign ACUS23 enamel. Note the airbrakes that are moulded closed.
Time for decalling!

The Model Alliance set 72138 decals are fine. These were applied after the model got a gloss varnish coat using Johnson Future / Pledge with the airbrush. The INDIA roundels are separate decals to ensure they are not printed "off center".

The anti-glare panel was made with a decal. The leading edges were hand painted black with a fine brush, a tedious work and needing a very steady hand. NO STEP markings were found in the decal spares box.

The undercarriage fitting was done as noted above with some changes....

I saw later that a black antenna panel was at the inner upper starboard wing, this was hand brush painted. Also, the rear end of the fuselage was black.

Now, it was time for completing the model.

Fitting the tailplanes was straight forward as per kit instructions, ensure a 5 degree dihedral of the tailplanes as on all Jaguars. On the undercarriage legs a few hydraulics lines were set in place made from thin metal wire.

A pilot figure was found in the spares box and set in the cockpit. The canopy was set closed. It fits OK but the tiny gaps were closed with white glue applied with a toothpick. When dried, painted in the appropriate camouflage colours noted above.

The Indian IM carried a missile looking like a "Sea Eagle" missile but with a rounder nose and an extra lower fairing. A "Sea Eagle" missile was retrieved from a Sea Harrier kit (note that India used Sea Harriers from their carriers), e.g a kit from Revell or Hasegawa. The missile got an extra fairing, its' head sanded round and a basic paint coat of yellow with dark grey panels. Maybe it was used in this scheme for trails, I am not sure. A lot of work with masking and painting but worth the effort. I used a central spare pylon from the Hasegawa kit, part B17 . The rear portion (about 30%) of the pylon was cut off and looks OK for the "Sea Eagle look alike" missile.

Fuel tanks airbrushed before were installed with also the usual loading red stripes as per kit decals. Note that the Indian fuel tank stencils are different than on RAF Jaguars.

The final smaller antennas were set in place, made from thin card as well as 2 nose pitots that on the "IM" are at different location as usual on Jaguars. They are a bit different in shape as well as compared to those on the RAF Jaguar Gr.1.

The anti-collision lights on the wingtips were painted red (port) and blue (starboard) and a drop of Micro Kristal Kleer added when dried. The larger red anti-collision lights on the spine and lower aft fuselage were made from clear red plastic found in the spares box.

The model got a final varnish clear coat using again Johnson Future/ Pledge with the airbrush. This gives a nice gloss even sheen as used on naval aircraft and protects the decals from drying out for the future.

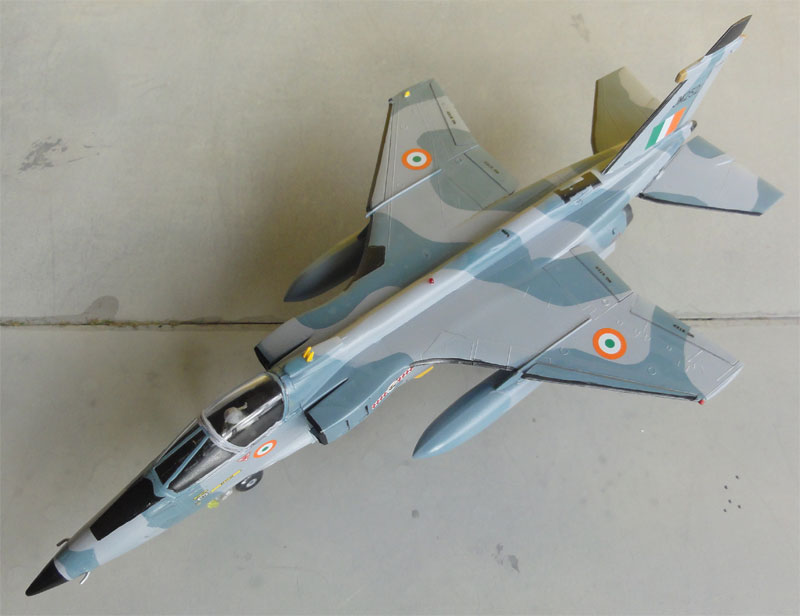

That completed the Jaguar IM of India as based at Pune / Poona Air Base, India of no. 6 squadron "the Dragons".
